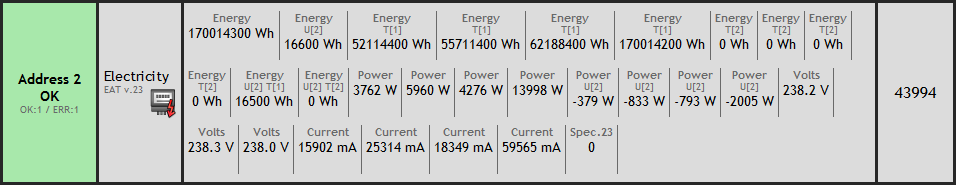

Direct-connected three phase electricity meter 3x230V/400V with current measurement up to 125A compliant with EU MID (Measuring Instruments Directive).

Manufacturer: EATON
Meter type: Electricity meter

Note: ZM-Bus line load is about 2.6mA. Due to this higher current load it is possible to connect 1.7 times less electricity meters to the M-Bus converters.

e.g. EthMBus-4SL max. one electricity meter. EthMBus-XL45 max. twentyfive electricity meters.

Values export:

• CSV export example
• XML export example
• XML REST export example

Direct-connected three phase electricity meter 3x230V/400V with current measurement up to 65A compliant with EU MID (Measuring Instruments Directive).

Manufacturer: EATON
Meter type: Electricity meter

Values export:

• CSV export example
• XML export example
• XML REST export example

• PRO1-Mb 0,25-45A: Single phase electricity meter for 230V with current measurement up to 45A compliant with EU MID (Measuring Instruments Directive).
• PRO2-Mb 0,25-100A: Single phase electricity meter for 230V with current measurement up to 100A compliant with EU MID (Measuring Instruments Directive).
• PRO380-Mb 0,25-100A: Three phase electricity meter 3x230V/400V with current measurement up to 100A compliant with EU MID (Measuring Instruments Directive).
• PRO380-Mb CT x/5A: Three phase electricity meter 3x230V/400V with indirect current measurement up to 5A compliant with EU MID (Measuring Instruments Directive).

Manufacturer: inepro
Meter type: Electricity meter

Note: M-Bus line load is about 3.3mA. Due to this higher current load it is possible to connect 2.2 times less inepro electricity meters to the M-Bus converters. e.g. EthMBus-4SL max. one electricity meter. EthMBus-XL45 max. twenty electricity meters.

Values export: Value exports are the same for all types of these electricity meters

• CSV export example
• XML export example
• XML REST export example

Three phase electricity meter 3x230V/400V with current measurement up to 65A. MID (Measuring Instruments Directive) approved meter.

Manufacturer: inepro
Meter type: Electricity meter

Values export:

• CSV export example
• XML export example

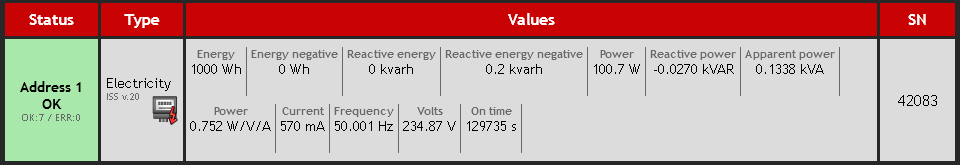

Direct-connected single phase electricity meter 230V with current measurement up to 40A compliant with European MID (Measuring Instruments Directive).

Manufacturer: Iskra
Meter type: Electricity meter

Values export:

• CSV export example
• XML export example
• XML REST export example

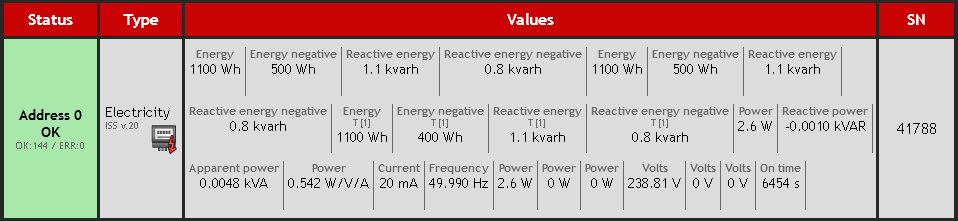

Direct-connected three phase electricity meter 3x230V/400V with current measurement up to 80A compliant with European MID (Measuring Instruments Directive).

Manufacturer: Iskra
Meter type: Electricity meter

Values export:

• CSV export example
• XML export example
• XML REST export example

Direct-connected three phase electricity meter 3x230V/400V with current measurement up to 80A compliant with EU MID (Measuring Instruments Directive).

Manufacturer: SCHRACK
Meter type: Electricity meter

Values export:

• CSV export example
• XML export example
• XML REST export example

The DRM-M is an optional infra-red communication system for M-Bus by TE Connectivity. It is an add-on module that enables meter readout via M-Bus communication with TE’s MID electricity meters.

The module is available for the following TE product lines:

• Energy Meter Single-phase, Direct Connection
• Energy Meter Three-phase, CT Operated
• Energy Meter Three-phase, Direct Connection

Not all meters from these lines require this module for M-Bus communication and the verified compatibility currently applies only to communication using the add-on module.

Manufacturer: Crompton Instruments / TE Connectivity
Type of device: M-Bus add-on module for electricity meters

Values export:

• CSV export example
• XML export example
• XML REST export example

Modular ultrasonic heat meter. Compatibility applies only to meters equipped with the M-Bus communication plug-in board.

Manufacturer: Itron
Plug-in module: M-Bus board
Meter type: Heat meter

Values export:

• CSV export example
• XML export example
• XML REST export example

Heat meter with an ultrasonic flow meter.

Manufacturer: Landis+Gyr
Meter type: Heat meter

Values export:

• CSV export example
• XML export example
• XML REST export example

Heat meter. Can be connected to flow meters. Additional connection for electricity or water meters.

Manufacturer: Kamstrup
Meter type: Heat meter

Values export:

• CSV export example
• XML export example
• XML REST export example

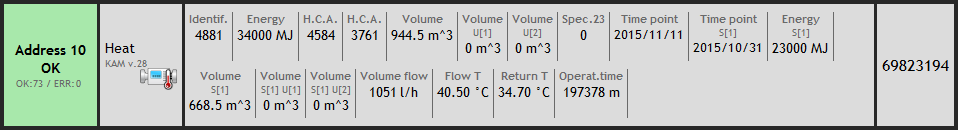

Modular heat meter with flowmeter. The verified compatibility was tested only on a MULTICAL 602 meter with Wireless M-Bus module with 2 pulse inputs.

Manufacturer: Kamstrup
Meter type: Heat meter

Note: Meter with Wireless M-Bus module. Meter readout performed through Wireless M-Bus Kamstrup concentrator.

Values export:

• CSV export example
• XML export example
• XML REST export example

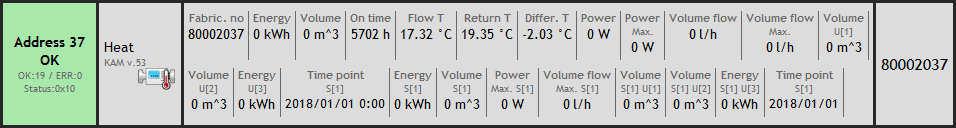

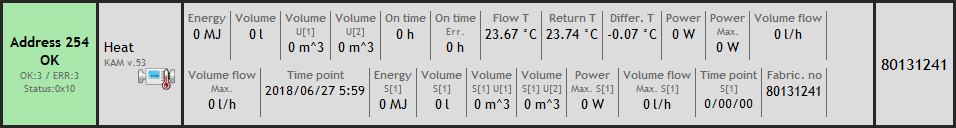

Modular heat meter with flowmeter. Latest heat meter with an option to connect an ultrasound flow meter and automatic detection of it. Wide selection of communication modules and their configurations.

Manufacturer: Kamstrup
Meter type: Heat meter

Values export:

• CSV export example
• XML export example
• XML REST export example

Heat meter with an ultrasonic flow meter.

Manufacturer: Engelmann
Meter type: Heat meter

Note: Warning. The meter is limited to a maximum of 24 communications per 24 hours. After this limit is exceeded the meter stops to communicate entirely.

Values export:

• CSV export example
• XML export example
• XML REST export example

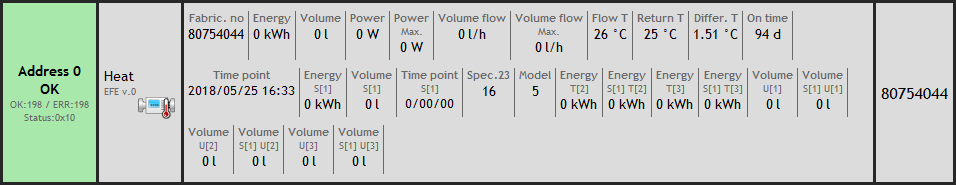

Heat meter with an ultrasonic flow meter.

Manufacturer: Engelmann
Meter type: Heat meter

Values export:

• CSV export example
• XML export example
• XML REST export example

Heat meter with an ultrasonic flow meter.

Manufacturer: DIEHL
Meter type: Heat meter

Values export:

• CSV export example
• XML export example
• XML REST export example

Multi-functional integrator unit suitable for the measurement of heating or cooling flow and for the combined heating/cooling measurement.

Manufacturer: Sontex
Meter type: Heat meter

Values export:

• CSV export example
• XML export example
• XML REST export example

M-Bus communication interface module for Itron water meters. Can be fitted to the entire Itron water meter product range: Flodis, Flostar M, Medis Cyble, System MK, System V, Unimag, Unimag Cyble.

Manufacturer: Itron
Type of device: M-Bus add-on module for water meters

Values export:

• CSV export example
• XML export example
• XML REST export example

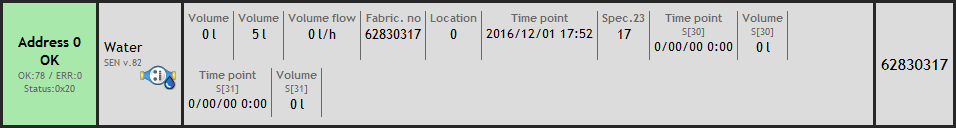

M-Bus communication interface module for Sensus water meters used in ResidiaJet™ water meters.

Manufacturer: Sensus
Type of device: M-Bus add-on module for water meters

Values export:

• CSV export example
• XML export example
• XML REST export example

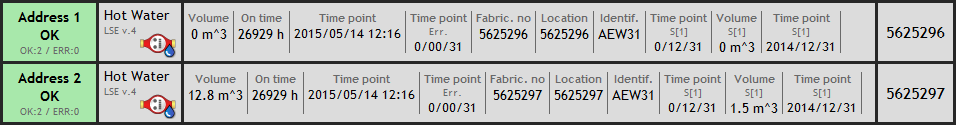

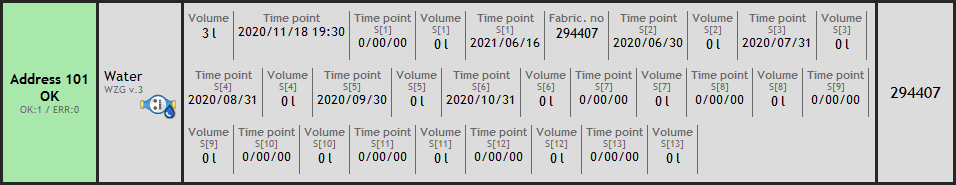

M-Bus communication interface module for water meters.

Manufacturer: SIEMENS
Type of device: M-Bus add-on module for water meters

Values export:

• CSV export example
• XML export example
• XML REST export example

Manufacturer: WEHRLE
Type of device: Water meter with M-Bus module

Note: The data examples below are from basic M-Bus response.

Values export:

• CSV export example
• XML export example
• XML REST export example

Pulse adapter with logging for M-Bus to receive and process pulses from one or two consumption meters with pulse output.

Manufacturer: Cynox
Type of device: Pulse adapter with logging for M-Bus bus

Note: The adapter offers full parameterization and time data, it can convert pulses into measured values. Readout data depends on the adapter settings and does not have to be only the number of recorded pulses.

Values export:

• CSV export example
• XML export example
• XML REST export example

Pulse adapter for M-Bus to receive and process pulses from a single consumption meter with a pulse output.

Manufacturer: Relay
Type of device: Pulse adapter for the M-Bus bus

Note: The meter data is 6-byte. Conversion to a decimal numeric printout only occurs up to a size of 4 bytes = 4.29 x 10⁹ (maximum value). The 6-byte value is always preserved in the hexadecimal printout.

Values export:

• CSV export example
• XML export example
• XML REST export example

Pulse adapter for M-Bus to receive and process pulses from one or two consumption meters with a pulse output.

Manufacturer: Siemens
Type of device: Pulse adapter for the M-Bus bus

Values export:

• XML export example
• XML REST export example

Pulse adapter for M-Bus to receive and process pulses from one or two consumption meters with a pulse output.

Manufacturer: Siemens
Type of device: Pulse adapter for the M-Bus bus

Values export:

• CSV export example
• XML export example
• XML REST export example
